Workshop Equipment Material Handling Type DB Bin Tipper for dumping 80L, 120L,140L and 240L hoppers

Product Description

Type DB Bin Tipper provide an excellent solution for emptying bulky trash cans.


  • Type:

     WS-DB

  • Surface Treatment:

     Red Painting or As Request


Inquire Now
Add To Cart

Product Description

Type DB Bin Tipper provide an excellent solution for emptying bulky trash cans.

Only one person can easily dump the 250kg garbage bin, saving manpower and improving efficiency.

The standard bracket is designed for 240L wheeled bins.

Also available with bolted spring card equipment for dumping 80L, 120L and140L hoppers.

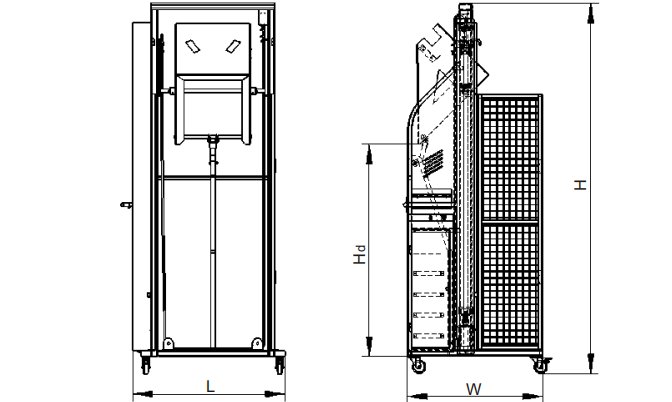

Type

Dimension(LWH)/mm

SWL/kg

Dumping Height(Hd)/mm

Weight/kg

WS-DB16

1160×1030×2830

2501600380

WS-DB20

1160×1030×3230

2502000426
