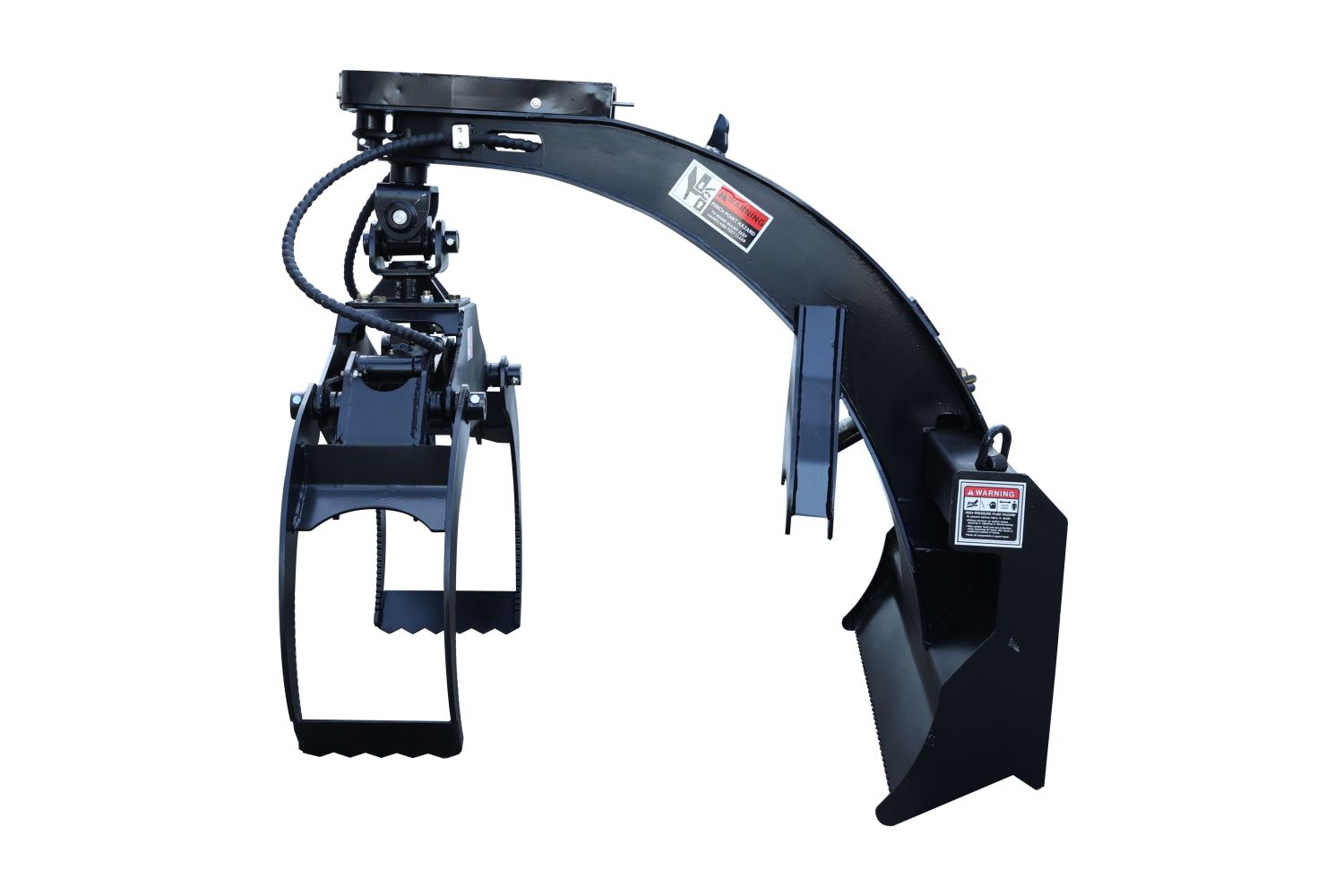

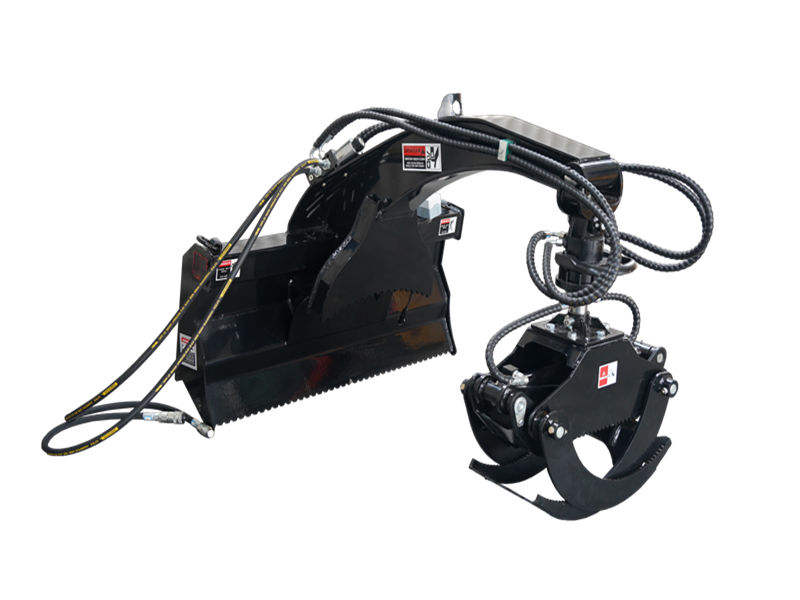

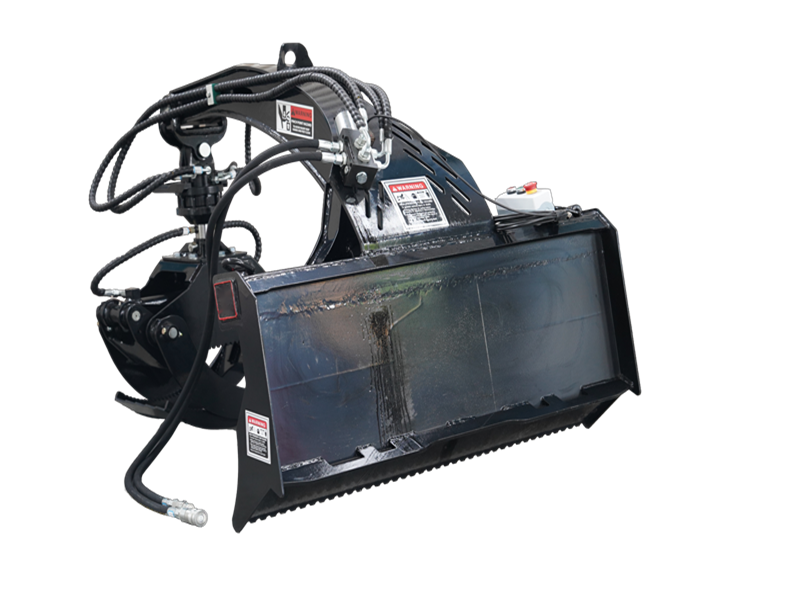

Skid Steer Mount Log Grapple ZK S-LG

Product Description

When you need to load, transport and stack logs smoothly and quickly at the sawmill, This Skidsteer log grapples is best tool for you.

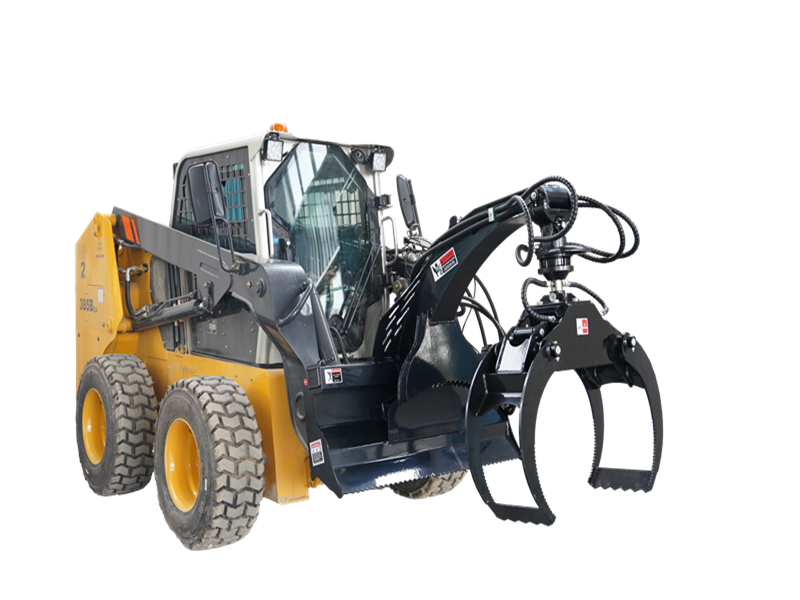

- Mounted directly to your skidsteer, these heavy-duty grapples give you total control from inside the cab to pick up and move logs with incredible agility.

- This Log Grapple is designed to fit the Skid Steer universal attachment plate

- From Forest to Fireplace, it Provides Heavy Duty Equipment to Get the Job Done!



TypeS-LG1360(80-1220)-MP1220
S-LG450(80-1020)-MP600

S-LG450(80-1020)-MP910

Lift Capacity1360kg450kg450kg
Recommended Hydraulic Flow60lpm60lpm
60lpm
Operate Pressure20Mpa20Mpa20Mpa
Grapple Opening80-1220mm80-1020mm80-1020mm
Grapple Rotation180°180°
180°
Total Weight271kg164kg195kg
Mounting SystemUniversal Skidsteer Quick Attach Plate, Inner width 1220mmUniversal Mini Loader Quick Attach Plate, Inner width 600mm
Universal Mini Loader Quick Attach Plate, Inner width 910mm



S-LG1360(80-1220)-MP1220

S-LG450(80-1020)-MP600



Bypass Grapple

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.


Spring-Centered Grapple with Locking Positions

The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.

Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.
