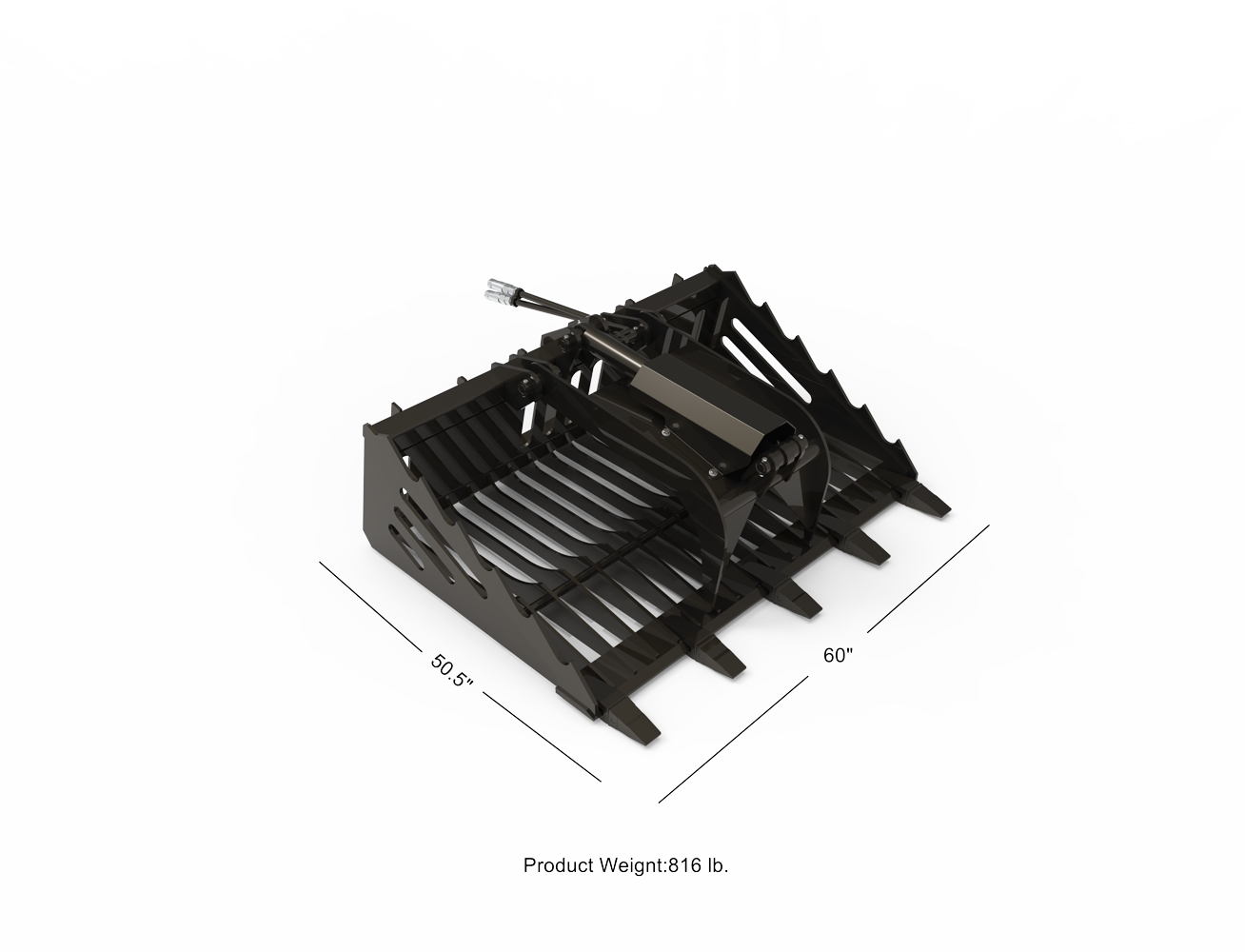

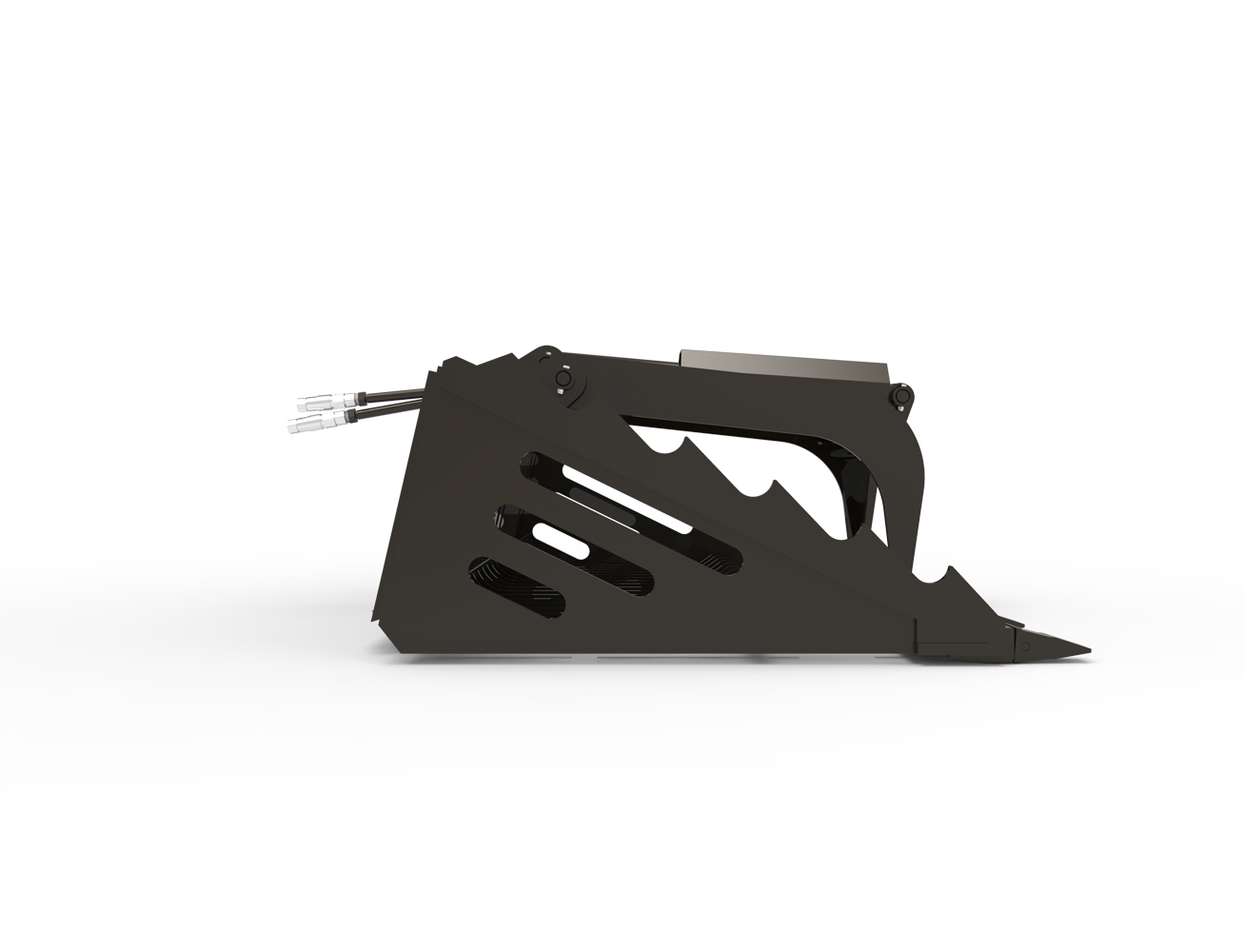

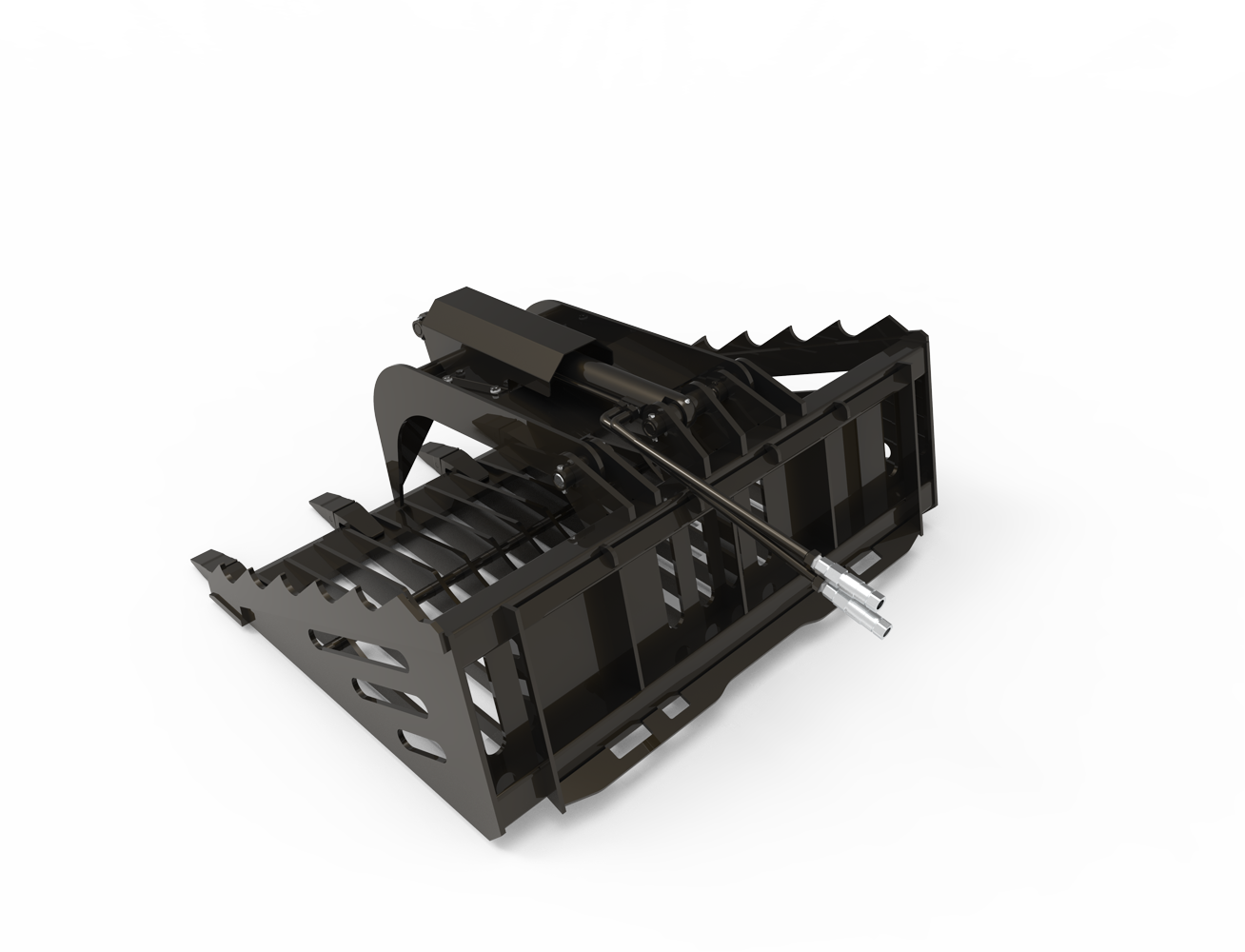

The Fine Grade Skeleton Rock Bucket Grapple Rakes are a great agriculture grapple used around the farm or ranch made to move rocks, brush, and debris with ease.
Type:
S-RBG1520(60IN)-MP1220
Surface Treatment:
Black Painting or As Request
These Fine Grade Skeleton Rock Grapple Rakes are designed to make sifting through rocks and debris effortless. With single or dual, 2.5-inch bore x 8-inch stroke hydraulic cylinders; they have the strength to lift and transport just about any obstruction. Available in 60, 72, or 82-inch widths featuring a 35.5-inch opening, they can efficiently hoist oversized and an array of rocks, brush, and debris. Plus, the buckets include a universal hookup, these grapples will attach with ease. Add one of these attachments to your collection to help you get the job done right.
Max Opening Height | Overall Depth | Inside Depth | Spacing Between Tines | Cutting Edge | Teeth | Tooth Count | Max loader operating Capacity |
35.5inch | 51.5inch | 38inch | 3inch | 1inch | 6inch | 5-7 | 3500lb |
- Connects to Skid Steers and Quick Tach Tractors
- Fine Grade tines are spaced 3-inches apart
- Open Tine Bottom for sifting debris
- Reinforced side cutters and cutting edge
- LW80 Replaceable teeth
- Frame is built with 3 x 3-inch steel tubing
- Single or Dual 2.5-in bore x 8-in stroke hydraulic cylinders
