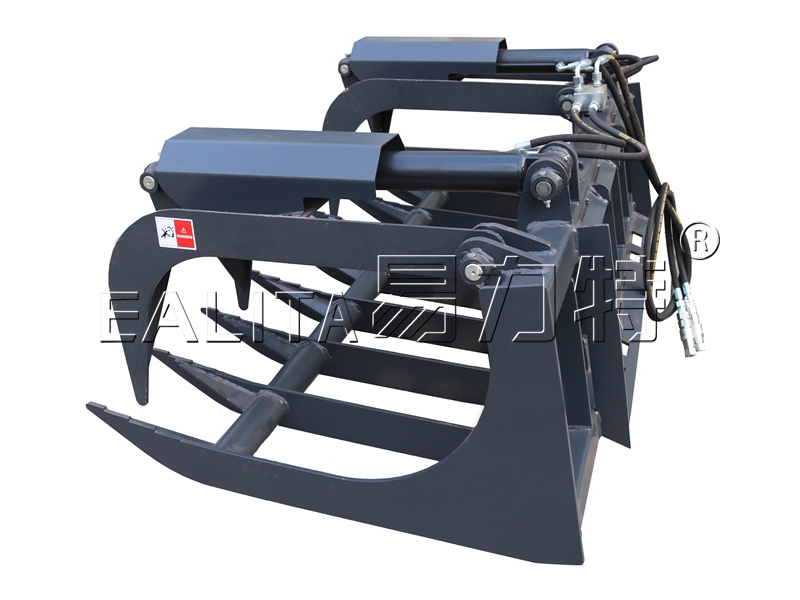

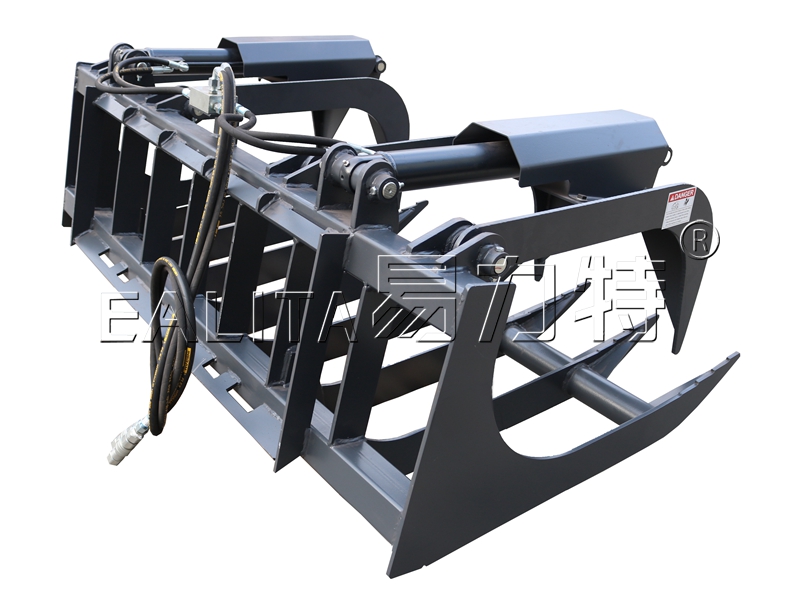

The Root Grapple Bucket is ideal for picking up and moving small logs, brush, debris, and other odd shaped or hard to lift material.
The Root Grapple Bucket is ideal for picking up and moving small logs, brush, debris, and other odd shaped or hard to lift material.
- It's efficient light weight design will not tax your loader's power allowing you to work faster.
- The independent grapples make it easy to move difficult and uneven loads.
- The serrated leading edge provides exceptional grip and can easily tear through small roots and brush.
- This grapple is not intended for heavier duty, commercial grade work to include digging or pulling trees, rocks, roots from the ground.
Features
- Universal skid steer style hookup
- Protective canvas sleeve keeps the hydraulic hoses from getting pinched when in use
- Greasable pins and bushings
- Hoses and flat faced couplers are included
- Twin cylinders
Specification
· Teeth Thickness: 10mm
· Pressure: 20Mpa
· Oil Flow: 60lpm

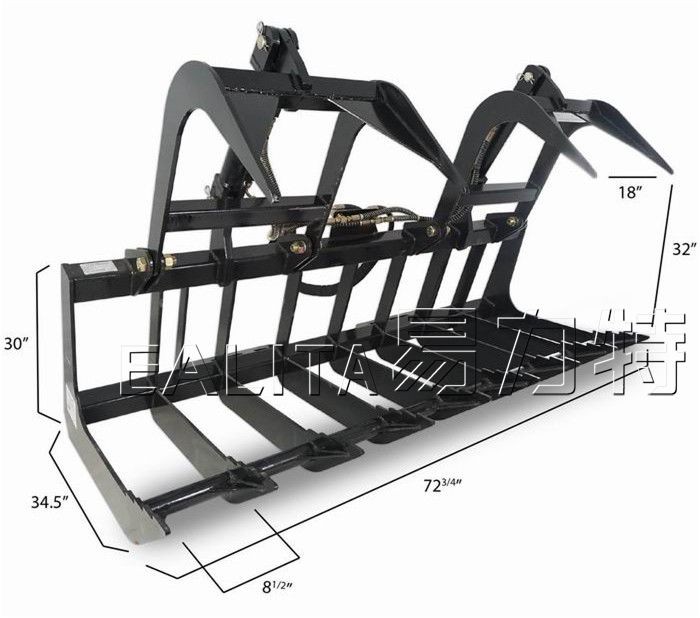

Type | Width(W)/mm | Opening Range(OR)/mm | Teeth Length(Lt)/mm | Teeth Thickness(Tt)/mm | Weight/kg |
S-RG1830(72IN)-MP1220 | 1830 | 390-813 | 985 | 10 | 272 |
S-RG2130(84IN)-MP1220 | 2130 | 390-813 | 985 | 10 | 300 |
