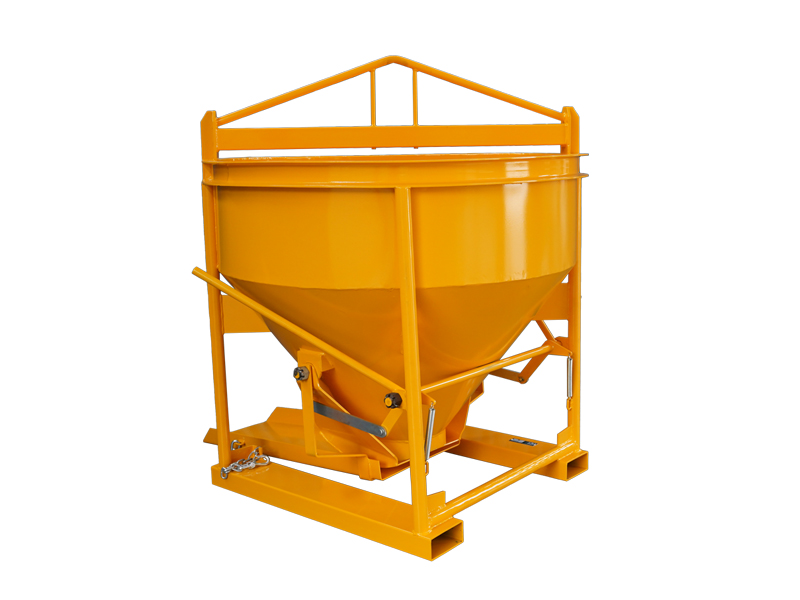

1CBM Concrete Kibble Bucket for a Trench Pipe Line Construction Job ZK WS-CK10

Concrete Kibbles have been designed for easy transfer of concrete on site by overhead crane.

- The type WS-CK10 Concrete Kibble has a volume capacity of 1.0 cubic metres.

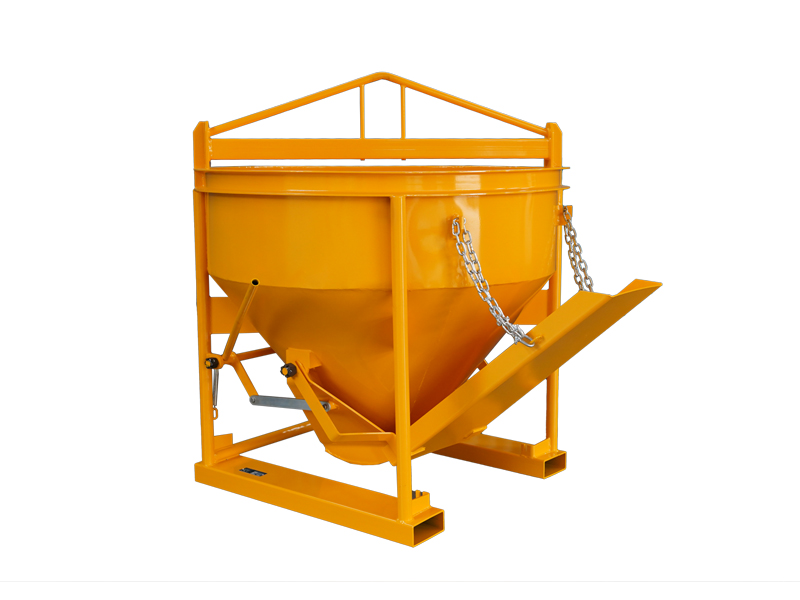

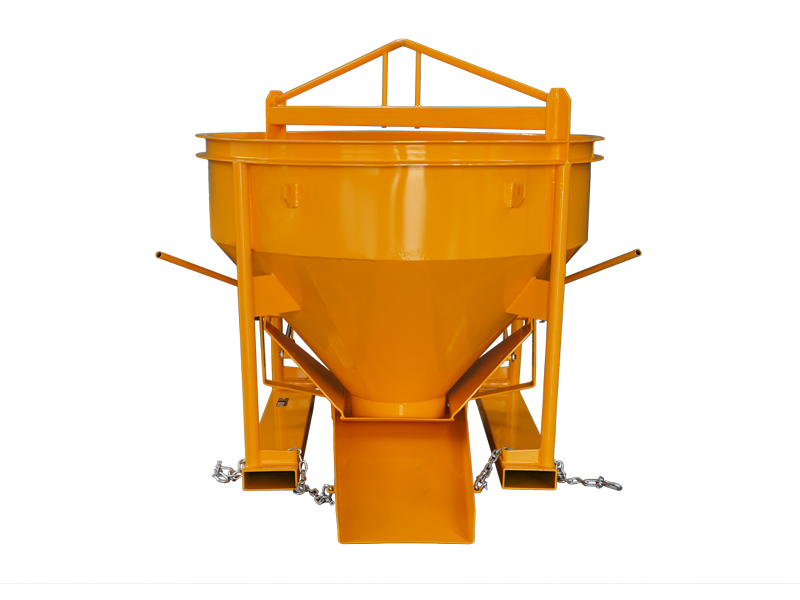

- This lightweight yet heavy duty Kibble can be used for both bottom discharge or side discharge

  with the use of the adjustable chute.

- This unit is lever operated from either side, allowing flexible operation.

- The unit has been fitted with Forklift pockets for transport purposes about the work site.

Specifications

• Code: 03.07.06.0001

• Safe Working Load (SWL) 3000kg

• Volume Capacity 1.0 cubic metres

• Unit Weight 320kg

• Fork Pocket Size 165 x 65mm

• Fork Pocket Centres 870mm

• Painted ‘Safety Yellow” enamel

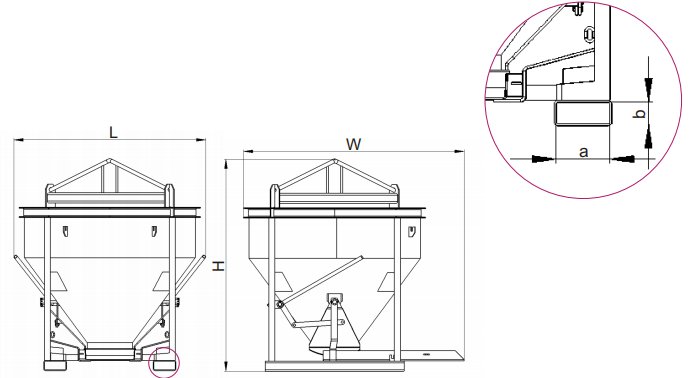

• Dimension(LWH)/mm:1530×1750×1680
